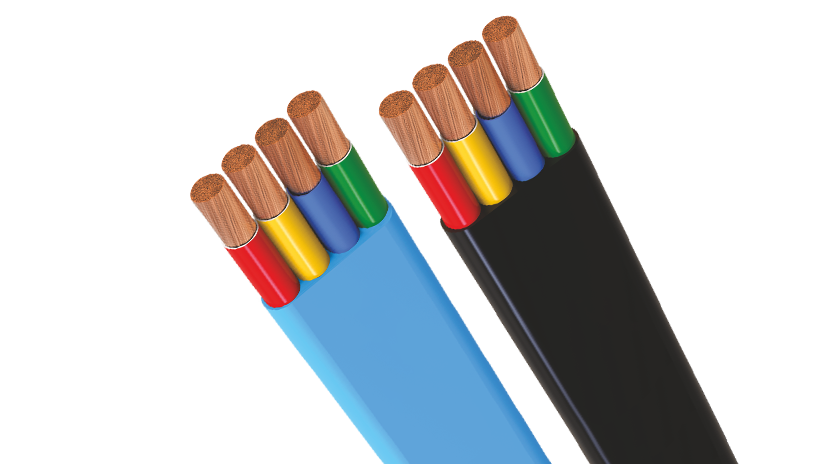

4 Core Flat Cable

PVC Insulated & Sheathed 4 Core Flat Cables as per IS 694/2010 are used to connect submersible pump motor with supply lines, these cables are made keeping in mind the severe operating conditions. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application.

  • PVC insulated & sheathed flexible Four Core Flat cables are used to connect underwater Submersible Pumpsets with supply line.
  • Agriculture, Irrigation, Domestic Installation, Outdoor application & Power Supply.
  • The outer sheath of the cable being made of special grade Abrasion resistant PVC makes it impervious to water, grease, oil, etc making cables highly durable.
  • Plain Copper conductor extra fine stranded & bunched in accordance to IS 8130/1984 for higher flexibility.
  • Each of the cores are insulated with PVC Compound for better insulation resistance against water and moisture.
  • Cores are laid in flat parallel manner and sheathed for highest performance in severe & difficult conditions.
  • Marking of brand name, cross-section & Logo on each mtr.
  • Testing of cable carried out as per IS 694/2010 at our In House facility.
